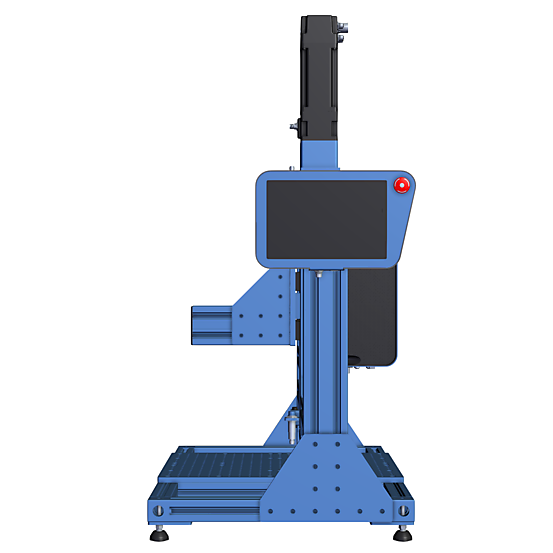

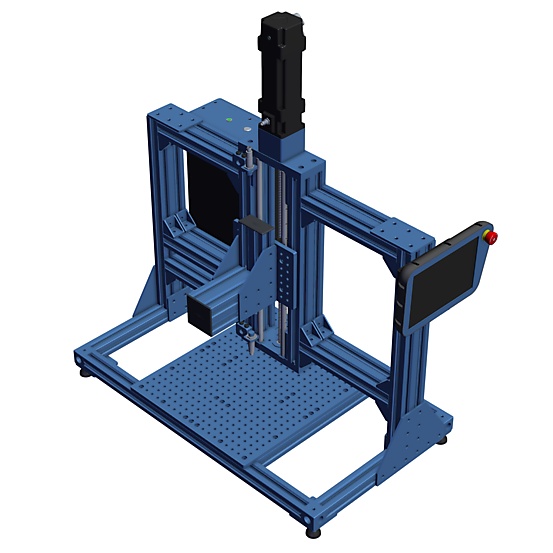

Ball screw cycle test machine with a maximum travel of 405mm and linear force up to 3700N. Easily programmable with Machine Logic or Python via the pendant or a PC. Adjustable homing and end-stop prox sensors help you configure the axis for your application. The motor is equipped with an encoder for position feedback.
Technical Specifications
Design number | IT-AT-126025 v4 |
Weight | 67.8 kg |
Dimensions | 1142 x 1045 x 555 mm |
Unit price | $12,010.64 USD |
Use case | Inspection & Testing |
Application | Automated Testing |
Assembly time | 6:31 Hrs |
